Goal 「Try to understand the electromagnetic induction!!」
Principle
「A change in the magnetic field inside the coil produces a voltage.」
(コイルの中の磁界が変化すると、電圧が生じます。)
「This is electromagnetic induction.」
(これは電磁誘導です。)
「When there is a current, this is induced current.」
(そのとき流れる電流は誘導電流です。)
「Change the magnet's pole, and the direction of current is reversed.」
(磁石の極を変えると、電流の向きは逆になる。)
Preparations

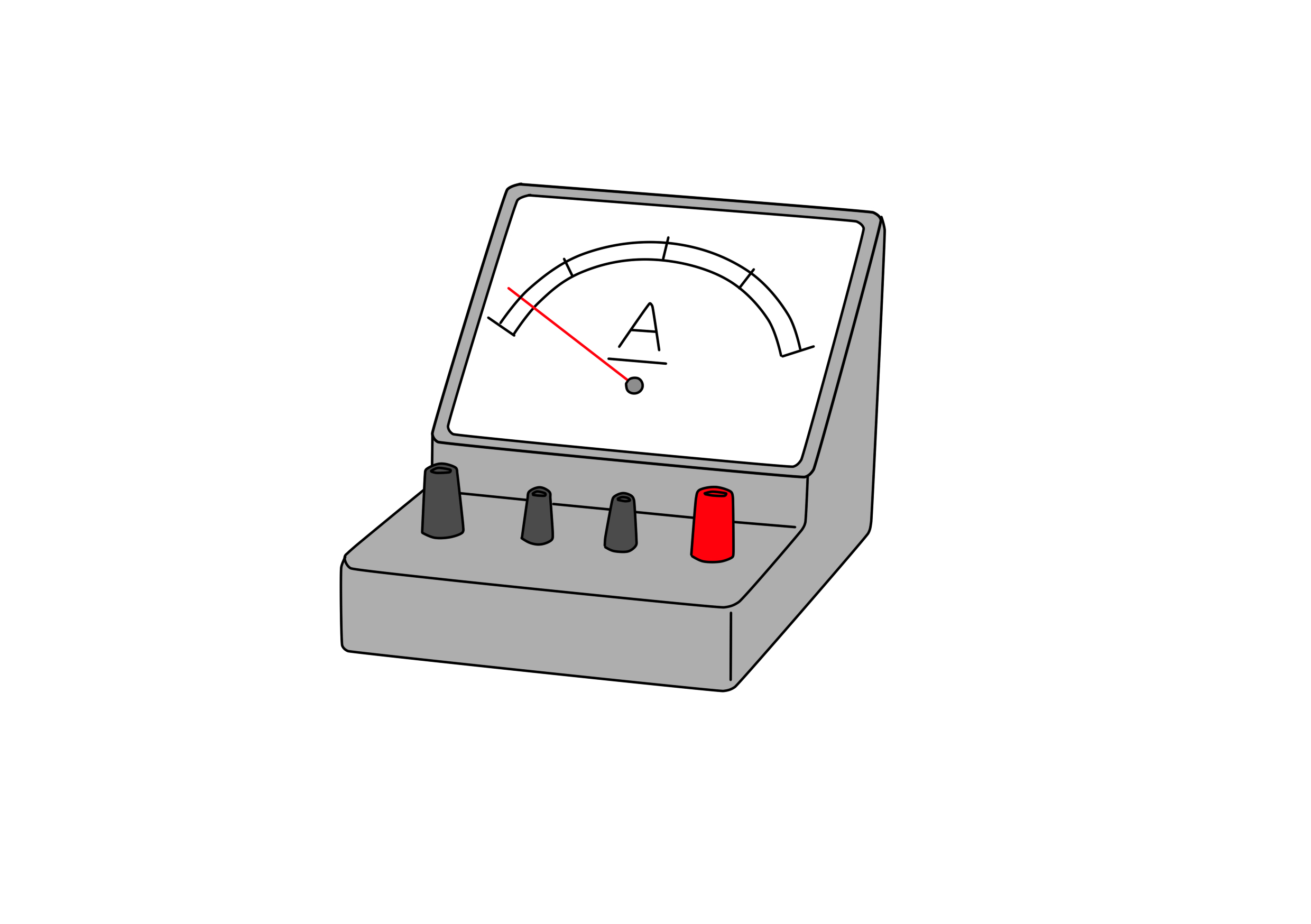

coils | ammeter | galvanometer | with a clip lead | bar magnet |
Experiment
@ | このような回路を作ります。 | |
A | コイルに棒磁石を出し入れしてみます。 | |
B | 電流計の針が振れます。(巻き方や極によって振れる方向は変わります) | |
C | コイルを2つ巻き方が同じになるように重ねてつなぎ、同じように実験します。 (動画はコチラ) |
